Rainscreen

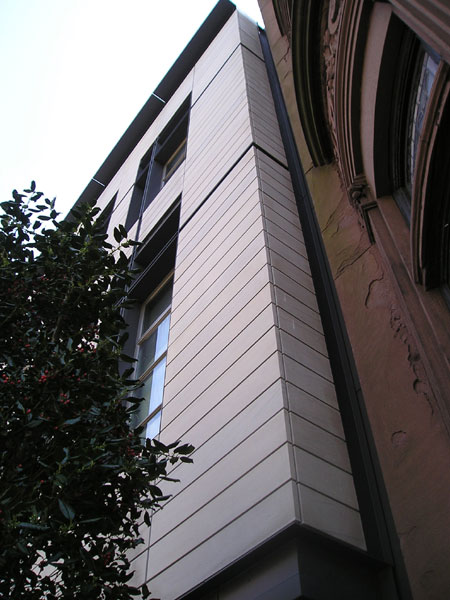

POLY PREP LOWER SCHOOL (Brooklyn, NY)

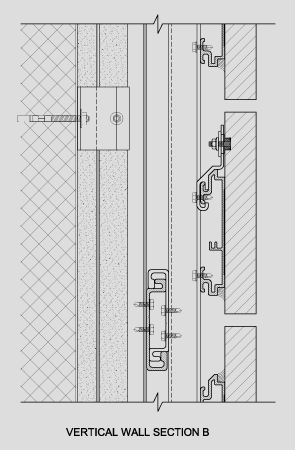

The small panels of 8" x 41" x 1 /14" limestone were pre-assembled on panels of four (4) in order to facilitate the installation. The face of stone was held off the substrate by 7" to allow for insulation and panel structure. This was accomplished with our adjustable wall bracket and tube construction.
