Typical Details

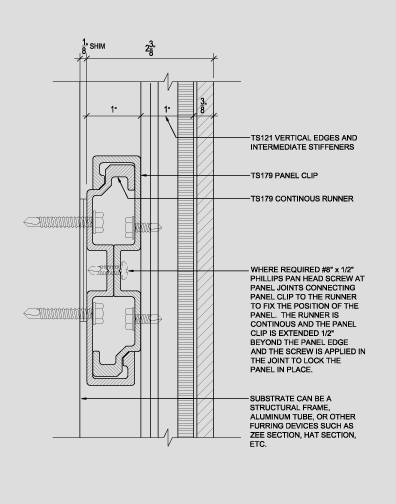

09:  TS179 WIDE INTERLOCKING CHANNEL

This extrusion is usually used on larger exterior panels and is compatible with TS192 Double Track Runner.   The overall wall depth is 2 3/8".   A shim space of 1/8" is recommended.


DOWNLOAD DETAIL :  DWG   PDF
