Typical Details

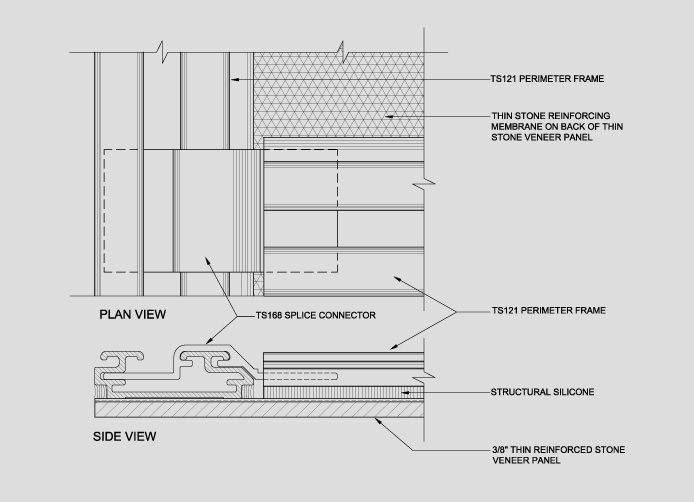

05:  TS168 CORNER SPLICE CONNECTOR

The TS168 Corner Splice Connector makes a structural slip connection at corners between two (2) intersecting frames.   The slip-connector allows some movement in both directions to compensate for possible movement in the panel due to temperature differentials, seismic forces, or high windloads.




DOWNLOAD DETAIL :  DWG   PDF
