Typical Details

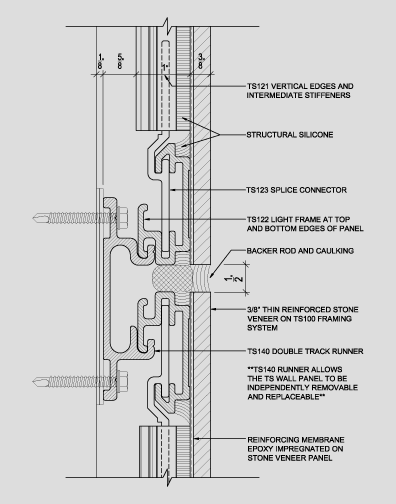

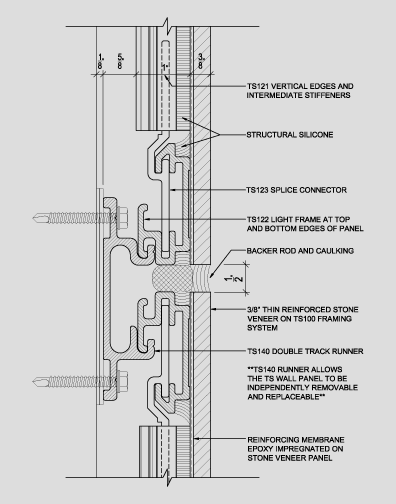

07:  TS140 NARROW DOUBLE TRACK RUNNER

The TS140 Double Track Runner is used to support the top and bottom of adjacent panels.   The panels have the TS122 frame at the top and bottom of each panel.   The verticals are usually TS121. This is economical since it requires only one piece of track for each panel.   It is shaped to automatically create 1/2" joint.   If a 3/8" joint is required, the extrusion will be set back 1/16" from each panel edge thus closing the gap by 1/8" creating a 3/8" joint.


DOWNLOAD DETAIL :  DWG   PDF
