Typical Details

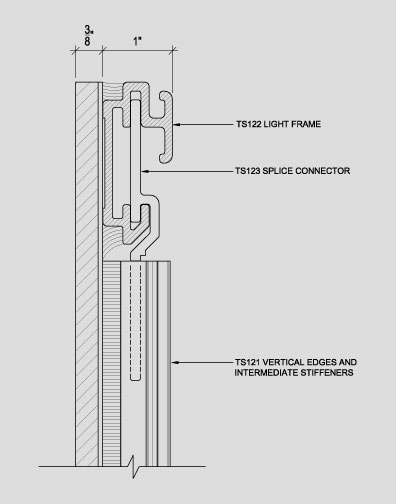

03:  TS122 LIGHT FRAME

The TS122 Light Frame is used at the top and bottom panel frames when the double track runners are used.   See Detail 07.   The verticals and intermediate stiffener, if necessary, are usually TS121 Perimeter Frame.


DOWNLOAD DETAIL :  DWG   PDF
