Typical Details

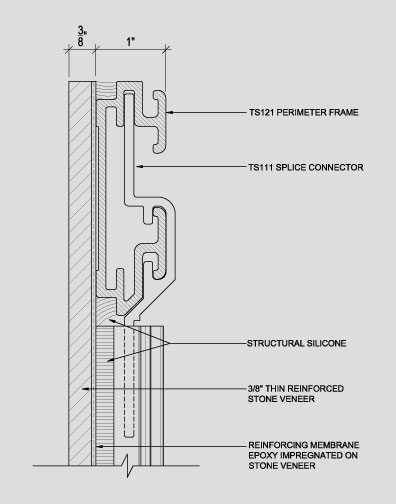

02:  TS121 PERIMETER FRAME

The TS121 is the basic perimeter frame, horizontal and vertical, as well as intermediate stiffeners, when required for larger size panels.   Panel dimensions can be as large as 4' x 8'.


DOWNLOAD DETAIL :  DWG   PDF
